Duplex Center Drive Slitter Rewinder 2
Model HDF-105-1300
Compact, Accessible, and Customizable
Designed with a short web path for easy machine access and quick

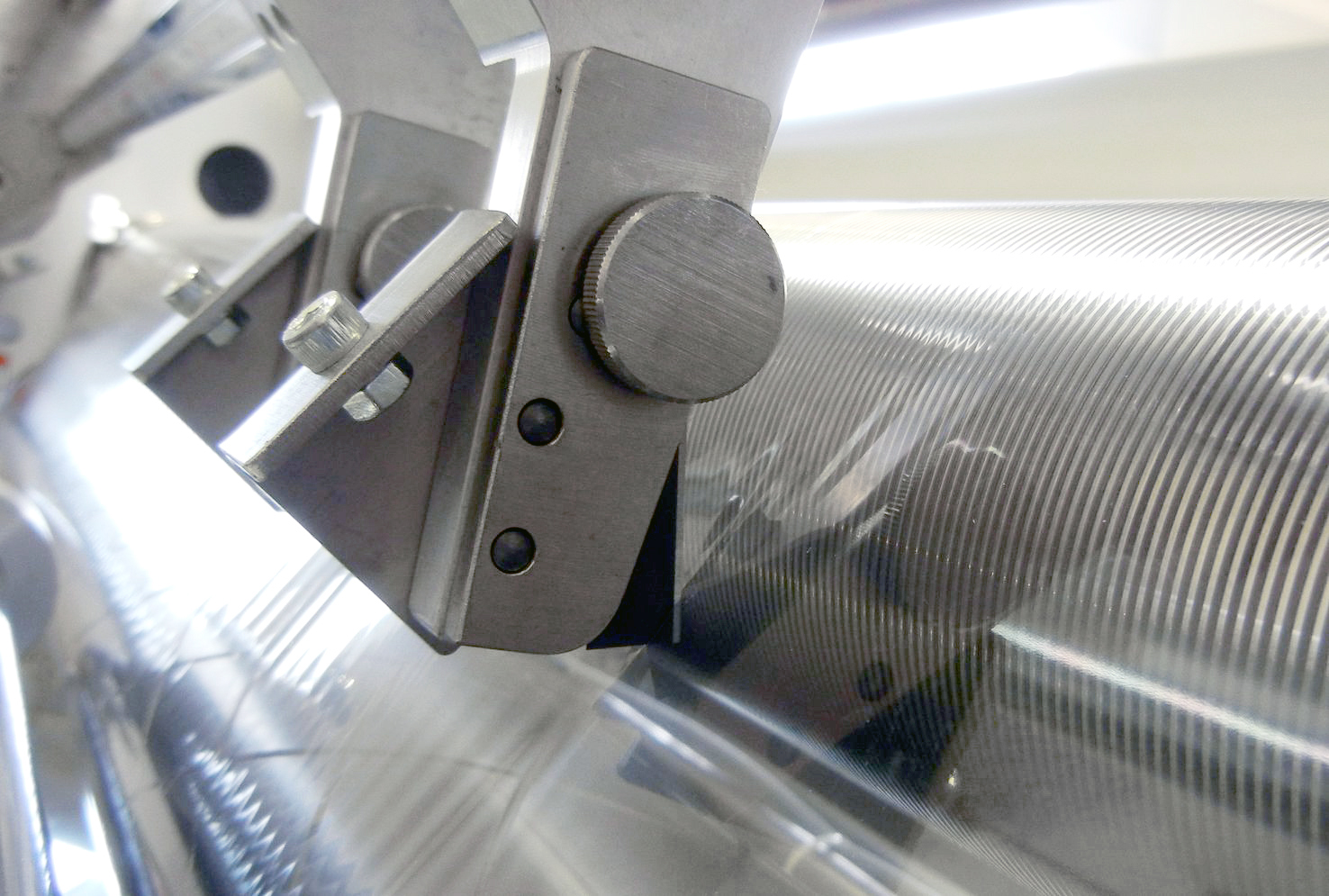

blade adjustments, this slitter rewinder features a space-saving footprint
without compromising functionality. Optional external trimming winders
and product receivers can be added for enhanced flexibility. Individually

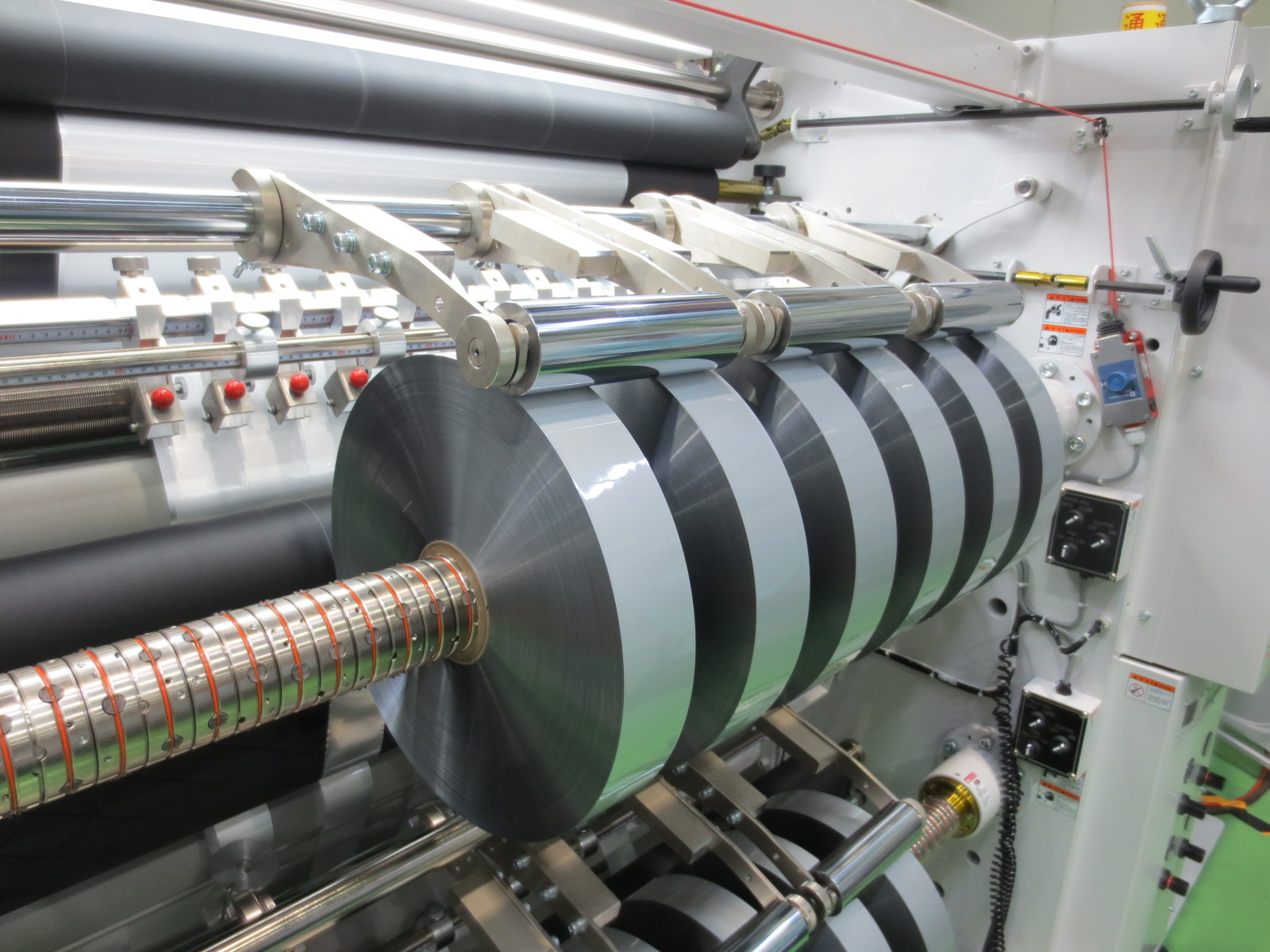

controlled by air pressure, the touch roller ensures precise web contact
and tension control.
Specifications
Model
HDF-105-1300
Web Width
60 – 500 mm
Unwind Diameter
500 mm
Unwind Core Size
3 in
Rewind Diameter
500 mm
Rewind Core Size
3 in
Speed
300 mpm
